| 16 Bit CPU mit
4 stage pipeline Capture Compare Unit (8 Kanäle, 2 Timer) Bis zu 16MByte Speicher über externen Daten/Adressbus konfigurierbar in 256 Segmenten. Das OS der C-Control II unterstüzt bis zu 16 Segmente à 64kByte, also 1MByte. |
|
| A / D Converter | 8/10-bit |
| Capture / Compare Unit | 8-Ch.+ 3/6-PWM |
| Watchdog Timer | Ja |
| Supply Voltage I/O | 5V |
| Interfaces | ASC SSC |
| MDU / ALU | Ja |
| Oscillator Watchdog | Ja |

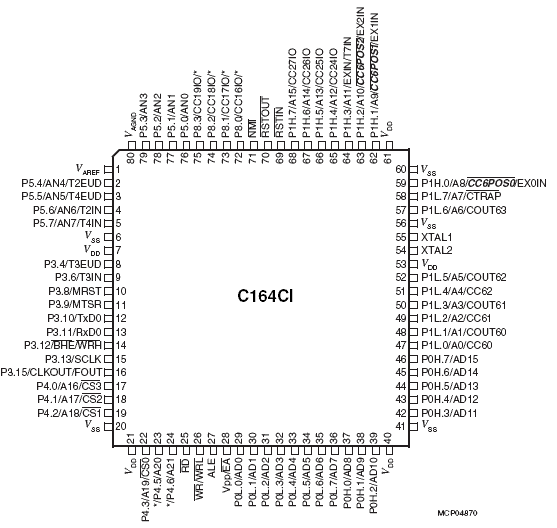

| Bauform | P-MQFP-80-7 |
| Pin Count | 80 Pins |
| Internal RAM Size | 2 kByte |
| Timer / Counter (16-bit) | 5 |
| Word Size | 16 Bit |
| Operating Temperature (min) (max) |
-40°C 125°C |
| Internal OTP Size | 64 kByte |
| CAN Version | 1x 2.0B Active |
| I/O Lines | 59 |
| Extension RAM Size | 2 kByte |
| Clock Frequency | 20 MHz |
Datenblatt C164CI Manual C164CI
